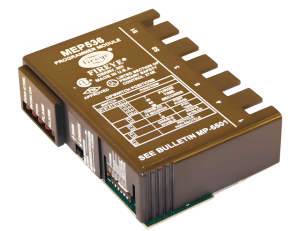

The Fireye MEP536 is a programmer module for the Modular MicroM control used with the MEC120 and MEC230 chassis. The module offers selectable purge, PTFI, airflow, and recycle settings through DIP switches.
Technical Specifications
- Manufacturer: Fireye
- Part Number: MEP536
- Product Type: Programmer Module
- Purge Time: 7/30/60/90 sec selectable
- Pilot Trial for Ignition (PTFI): 5 or 10 sec
- Main Trial for Ignition (MTFI): 10 sec
- Functions:
- Air Flow Proven at Start
- Recycle or Non-Recycle
- Run/Check Switch
Key Features and Functionality
- Selectable Purge: Configures purge duration for sequence setup.
- PTFI Options: Enables a five or 10-second ignition trial.
- Airflow Logic: Prevents lockout when airflow opens during purge.
- LED Indicators: Provides operating status and lockout diagnostics.
- Run/Check Switch: Assists pilot sizing and stabilization tests.
Compatible Components and Related Parts
- MEC120 Chassis
- MEC230 Chassis
- Modular MicroM™ Control
Compliance and Approvals
- UL Listed
- FM Approved
Installation and Operational Notes
- Align the module with the chassis guide slots during installation.
- Insert fully to engage the pin connectors correctly.
- Verify purge and PTFI DIP switch settings before startup.
- Use the check/run switch for pilot testing procedures.
- Confirm airflow switch wiring matches the selected airflow option.
Series Information
Fireye MP-5501 MEP500s Programmers
