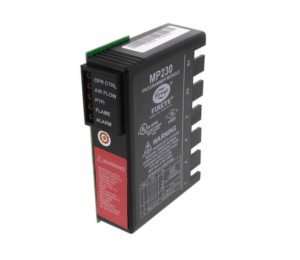

The Fireye MP230 Programmer Module is a plug-in control module for MC120-series chassis that provides automatic burner sequencing, flame supervision, and safety interlocks. It supports multiple scanner types and offers programmable purge/timing and diagnostic status indicators.
Technical Specifications
- Manufacturer: Fireye
- Model Number: MP230
- Type: Programmer module (Modular M-Series II)
- Control Functions: Burner sequencing, flame supervision, safety interlocks
- Flame Monitoring: Supports UV, IR, and flame rod scanners
- Operating Voltage: 120 VAC or 230 VAC (model/chassis dependent)
- Certifications: UL, CSA, FM, CE
- Mounting Method: Plug-in module for compatible MC120/MC230 chassis
Key Features
- Automatic burner sequencing with programmable purge and timing
- Flame supervision compatible with UV, IR, and flame rod inputs
- Integrated diagnostics and status indicators for fault identification
- Plug-in form factor for quick installation and replacement
Compatible Components & Accessories
- Fireye MC120, MC120E, MC120P, MC120R, MC120RE chassis (120 VAC)
- Fireye MC230, MC230R chassis (230 VAC)
- Fireye MART1 and MAUV1 flame amplifiers
- UV, IR, and flame rod scanners compatible with Fireye amplifiers
Industry Applications
- Industrial and commercial boiler control
- Power plant combustion management
- Petrochemical refining and gas processing
- Food processing and industrial heating
- Waste-to-energy and incineration plants
Installation & Maintenance Notes
- Install only in specified MC120/MC230 chassis; ensure module is fully seated in chassis socket.
- Verify operating voltage (120 VAC or 230 VAC) matches chassis rating before powering up.
- Configure purge and timing settings per burner requirements using module controls or chassis settings.
- Confirm scanner type and wiring (UV/IR/flame rod) and test flame supervision during commissioning.
- Perform periodic diagnostics checks and record status indicator results; replace module if diagnostics show non-recoverable faults.
- Isolate control power and follow lockout/tagout procedures before servicing or replacing the module.
