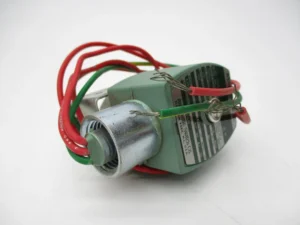

The Asco 8262G035 Solenoid Valve (8262G35) is a direct-acting, normally open, 2-way stainless steel valve designed for low-flow air, water, and light oil control in corrosive service environments. It enables continuous fluid passage in de-energized conditions and is suitable for integration in process control systems requiring tight shutoff and precise actuation.
Technical Specifications
- Valve Type: Direct Acting, Normally Open, 2-Way
- Pipe Size: 1/8″ NPT
- Flow Factor (Cv): 0.21
- Operating Pressure Differential:
- Max Air/Inert Gas: 125 psi (AC), 80 psi (DC)
- Max Water: 100 psi (AC), 60 psi (DC)
- Max Light Oil: 85 psi (AC), 50 psi (DC)
- Maximum Fluid Temperature: AC: 180°F (82°C), DC: 120°F (49°C)
- Body Material: Stainless Steel
- Seal Material: NBR
- Voltage Options:
- AC: 24, 120, 240, 480 V (60 Hz); 110, 220 V (50 Hz)
- DC: 6, 12, 24, 120, 240 V
- Watt Rating:
- AC: 6.1/F
- DC: 10.6/F
- Solenoid Enclosure:
- Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X
- Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9
Key Features and Functionality
- Stainless Steel Body: Suitable for corrosive fluid applications.
- Normally-Open Design: Flow remains open when the coil is not energized.
- Direct Acting Operation: Operates without inlet pressure.
- Moderate Cv Output: Provides measurable flow at low pressure.
- Reliable NBR Sealing: Withstands typical air, water, and oil media.
Compatible Components and Related Parts
- ASCO RedHat II Coil Series
- ASCO Mounting Brackets
- ASCO Seal Kit for 8262 Series
- ASCO Explosionproof Solenoid Enclosure
Industry Applications
- Car Wash Systems: Keeps detergent or rinse lines open during idle.
- Laundry Equipment: Controls water or chemical release in pre-wash cycles.
- Food Processing Equipment: Opens CIP rinse or sanitizer lines for cleaning.
- Boiler and Burner Systems: Keeps purge or vent ports open before ignition.
- Compressor Panels: Maintains air bypass or vent paths during shutdown.
Compliance and Approvals
- UL Listed for General Purpose
- CSA Certified
- CE Compliant
Installation and Operational Notes
- Verify pressure, voltage, and fluid compatibility before installation.
- Connect the inlet and outlet as marked on the valve body.
- Best performance achieved with the solenoid mounted upright.
- Install a strainer or filter at the inlet to prevent clogging.
- Depressurize the system and disconnect power before servicing.
