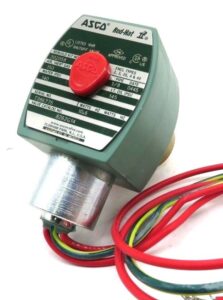

The Asco 8262G014 Solenoid Valve (8262G14) is a direct-acting, high-pressure valve designed for air, water, and light oil control in compact piping systems. Its brass construction and NBR seal enable consistent performance in harsh pressure environments, making it ideal for fuel dispensing, analytical devices, and instrument control systems.
Technical Specifications
- Valve Type: Direct Acting, Normally Closed, 2-Way
- Pipe Size: 1/8″ NPT
- Flow Factor (Cv): 0.20
- Operating Pressure Differential
- Max Air/Inert Gas: 275 psi (AC), 150 psi (DC)
- Max Water: 290 psi (AC), 140 psi (DC)
- Max Light Oil: 130 psi (AC), 145 psi (DC)
- Maximum Fluid Temperature
- AC: 180°F (82°C)
- DC: 120°F (49°C)
- Body Material: Brass
- Seal Material: NBR
- Voltage Options:
- AC: 24, 120, 240, 480 V
- DC: 6, 12, 24, 120, 240 V
- Watt Rating
- AC: 6.1/F
- DC: 10.6/F
- Solenoid Enclosure
- Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X
- Optional: Explosionproof & Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9
Key Features and Functionality
- Balanced Pressure Handling: Suitable for air, water, and light oil.
- Compact Body Format: Designed for limited-space installations.
- Fast Acting Response: The direct-acting mechanism ensures immediate shutoff.
- Clean Shutoff Reliability: Small poppet valve minimizes leakage.
- Mountable in Any Position: Installs flexibly in any orientation.
Compatible Components and Related Parts
- ASCO RedHat II Coil Series
- ASCO Mounting Brackets
- ASCO Seal Kit for 8262 Series
- ASCO Explosionproof Solenoid Enclosure
Industry Applications
- Analytical Equipment: Provides isolation for precision samples.
- Compact Control Panels: Ideal for tight OEM cabinet layouts.
- Fuel Injection Skids: Controls additives and small-volume fuels.
- Medical Instrumentation: Directs low-volume flow under pressure.
- Pneumatic Tools: Regulates pressurized air in small devices.
Compliance and Approvals
- CSA Certified
- UL Listed for Safety Shutoff Valve
- Meets applicable CE directives
- FM Approved
Installation and Operational Notes
- Verify the catalog number, voltage, and service before installation.
- Connect the inlet and outlet as marked on the valve body.
- Mount the solenoid vertically for best performance and lifespan.
- Install a strainer at the inlet to prevent clogging and ensure flow.
- Always depressurize and disconnect power before servicing.
Series Catalog
Asco 8262 & 8263 General Service Solenoid Valves
