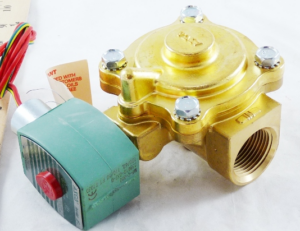

The Asco 8220G411 Solenoid Valve is a pilot-operated, normally closed valve engineered for high-temperature, high-volume flow in steam and hot water systems. The Class H coil and high Cv design support rapid media transfer and thermal stability in 1″ circuits, making it ideal for autoclaves, laundries, and heat-intensive processing lines.
Technical Specifications
- Valve Type: Pilot Operated, Normally Closed, 2-Way
- Pipe Size: 1″ NPT
- Flow Factor (Cv): 11.5
- Operating Pressure Differential
- Steam: 5 to 125 psi
- Hot Water: 5 to 150 psi
- Maximum Fluid Temperature
- AC Steam: 353°F (178°C)
- AC Hot Water: 210°F (99°C)
- Body Material: Brass
- Seal Material: EPDM, PTFE, or TFE/P
- Voltage Options:
- AC: 24, 120, 240, 480, 110V
- DC: 6, 12, 24, 120, 240V
- Watt Rating:
- AC: 10.1 watts
- Coil Insulation Class: H
- Solenoid Enclosure:
- Standard: NEMA 4X, IP65 (Watertight, Corrosion-Resistant)
- Optional: Explosionproof & Watertight (Types 3-9), Raintight (Types 3, 7, 9)
Key Features and Functionality
- High-Temperature Coil Design: The Class H insulation withstands extreme thermal duty.
- Large-Capacity Flow: High Cv supports rapid transfer in 1″ systems.
- Steam-Rated Performance: Suitable for saturated vapor up to 353°F.
- Stable Pilot Actuation: Maintains reliability under varying system loads.
- Thermal Fluid Compatibility: Built for both steam and hot water service.
Compatible Components and Related Parts
- ASCO RedHat II Coil Series
- ASCO Mounting Brackets
- ASCO Seal Kit for 8220 Series
- ASCO Explosionproof Solenoid Enclosure
Industry Applications
- Autoclaves and sterilizers: Enables the delivery of steam to sealed heating chambers.
- Industrial Laundries: Feeds high-volume water and vapor systems.
- Steam Atomization Units: Controls flow to burner and nozzle assemblies.
- Molding Temperature Units: Manages thermal cycling media.
- Thermal Spray Systems: Directs hot fluid to surface process tools.
Compliance and Approvals
- UL Listed
- CSA Certified
- CE Compliant
Installation and Operational Notes
- Ensure the solenoid coil voltage matches the system power.
- Depressurize the system and clean the piping before installation.
- Install a strainer or filter at the valve inlet to catch debris.
- Avoid overtightening and do not stress the valve body.
- Energize the coil after wiring to confirm actuation with an audible click.
